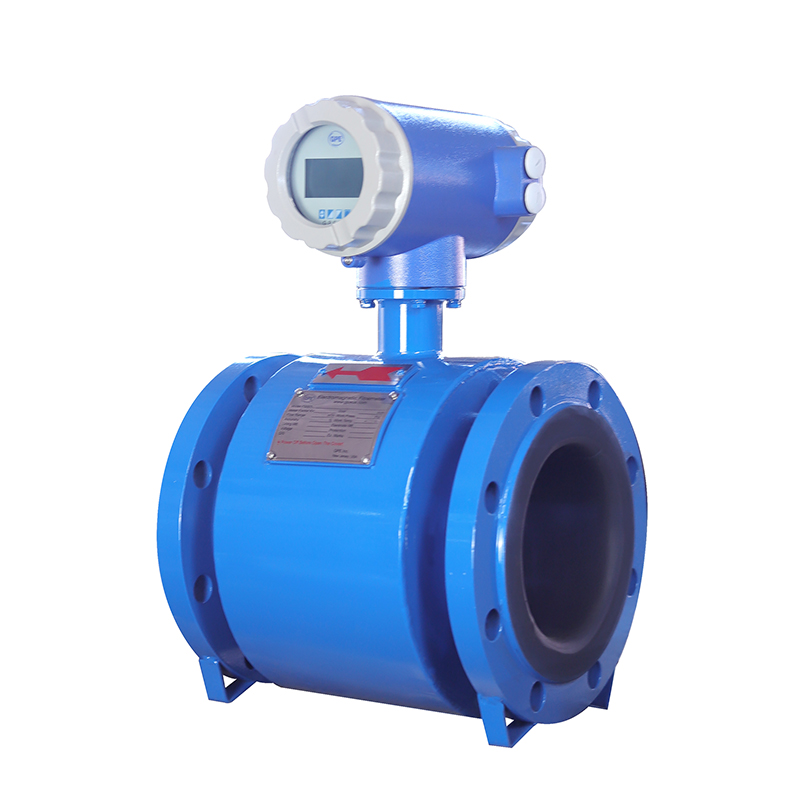

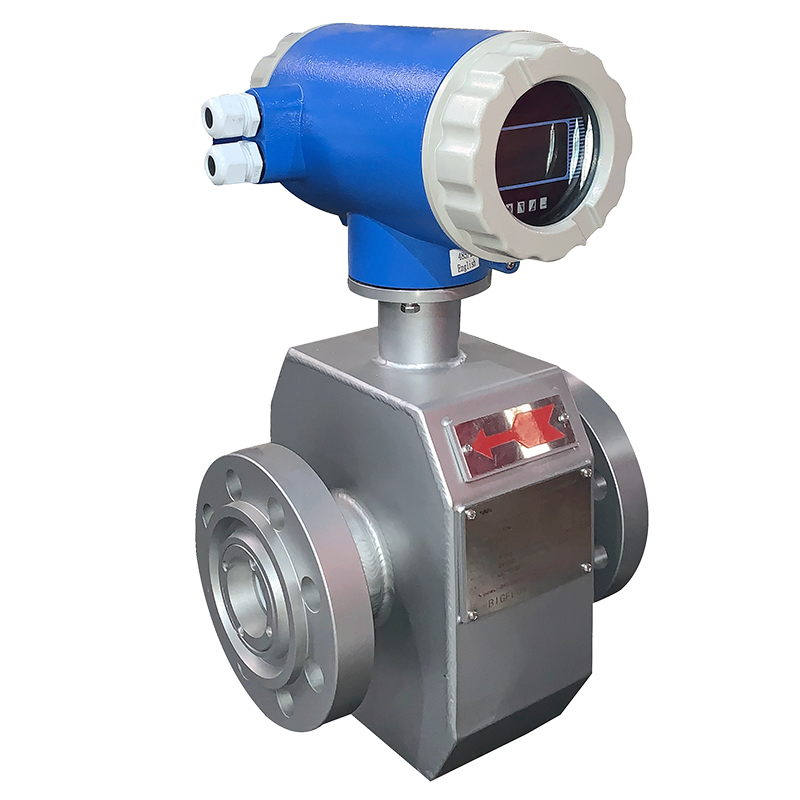

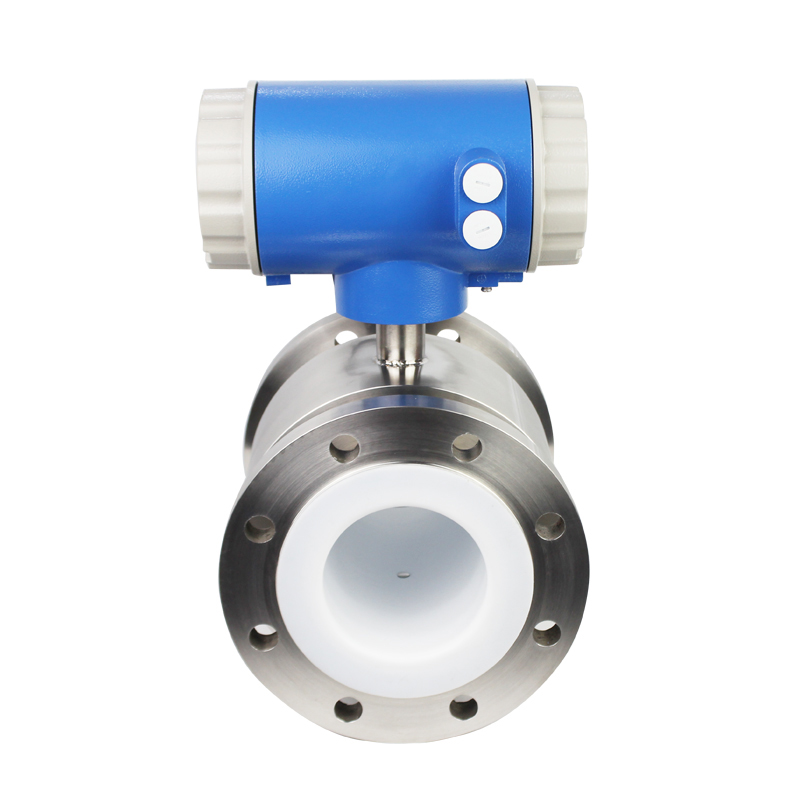

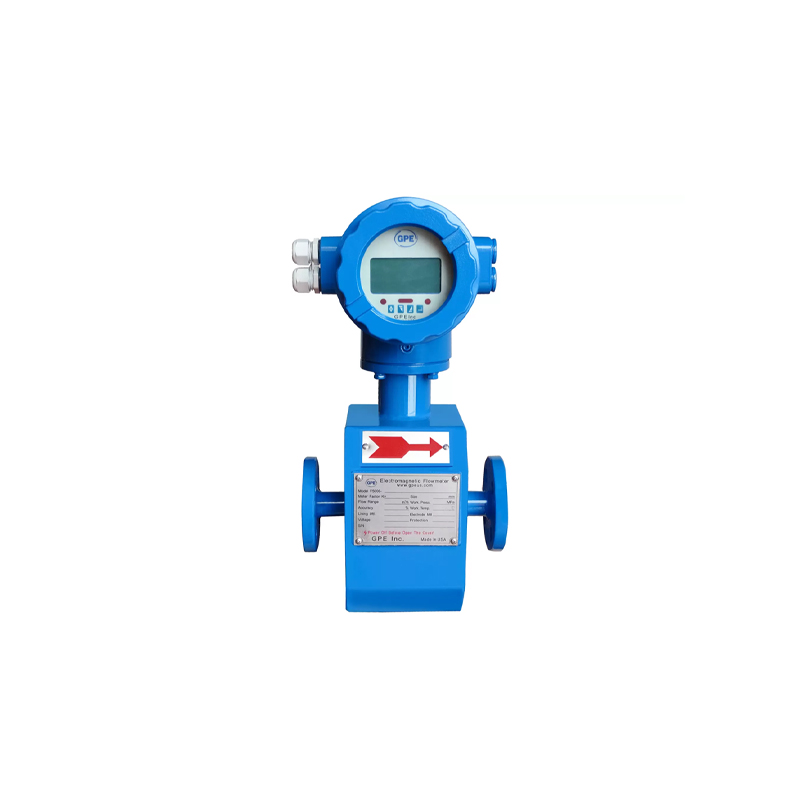

Electromagnetic flowmeter
Features

◉ Flow Velocity range:0-15 m/s

◉ GPRS, CDMA and SRD radio communication

◉ Designed for clean water > 5 uS/cm

◉ IP68 enclosure that can be used for underground applications

◉ High accuracy of ±0.5% of reading

◉ Empty pipe, current excitation and battery capacity alarms

◉ NIST traceable calibration certificate Easy maintenance due to no moving parts

◉ Uninfluenced by temperature, pressure, viscosity, and density

◉ Self-detection, self-diagnostic functions, and safety alarms for upper and lower limit

◉ Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption

◉ Lining and electrode available in various materials which can measure nearly all conductive fluids Meters batching and blending totalization





Request a quote

PRODUCT DETAILS

Introduction
Specifications
Documents

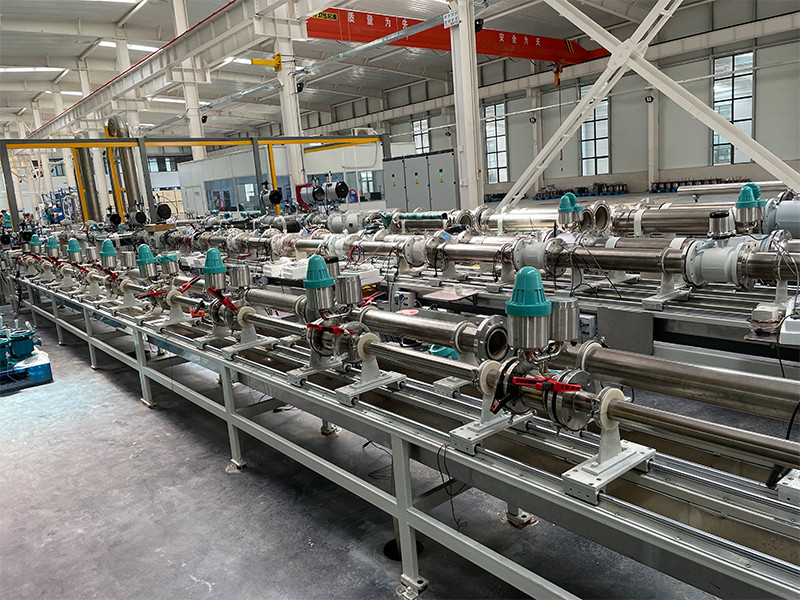

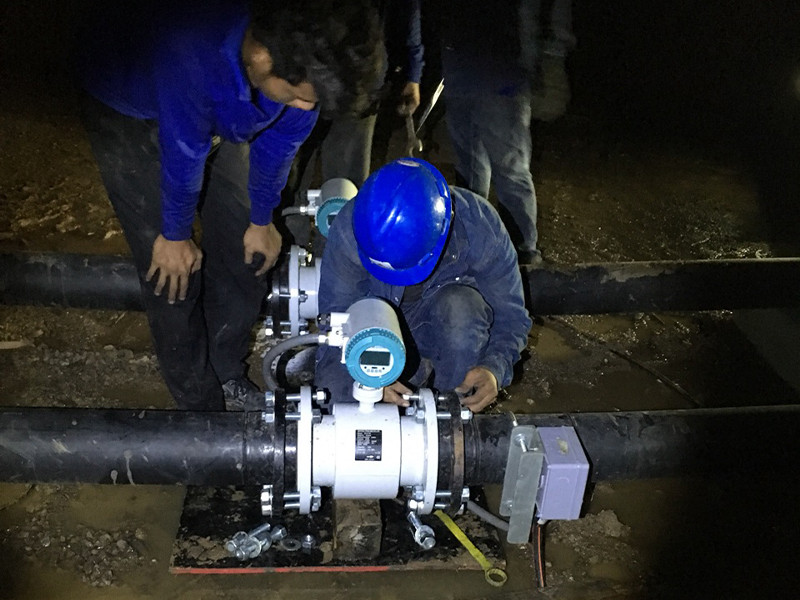

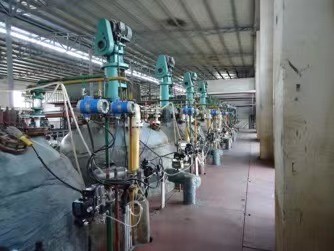

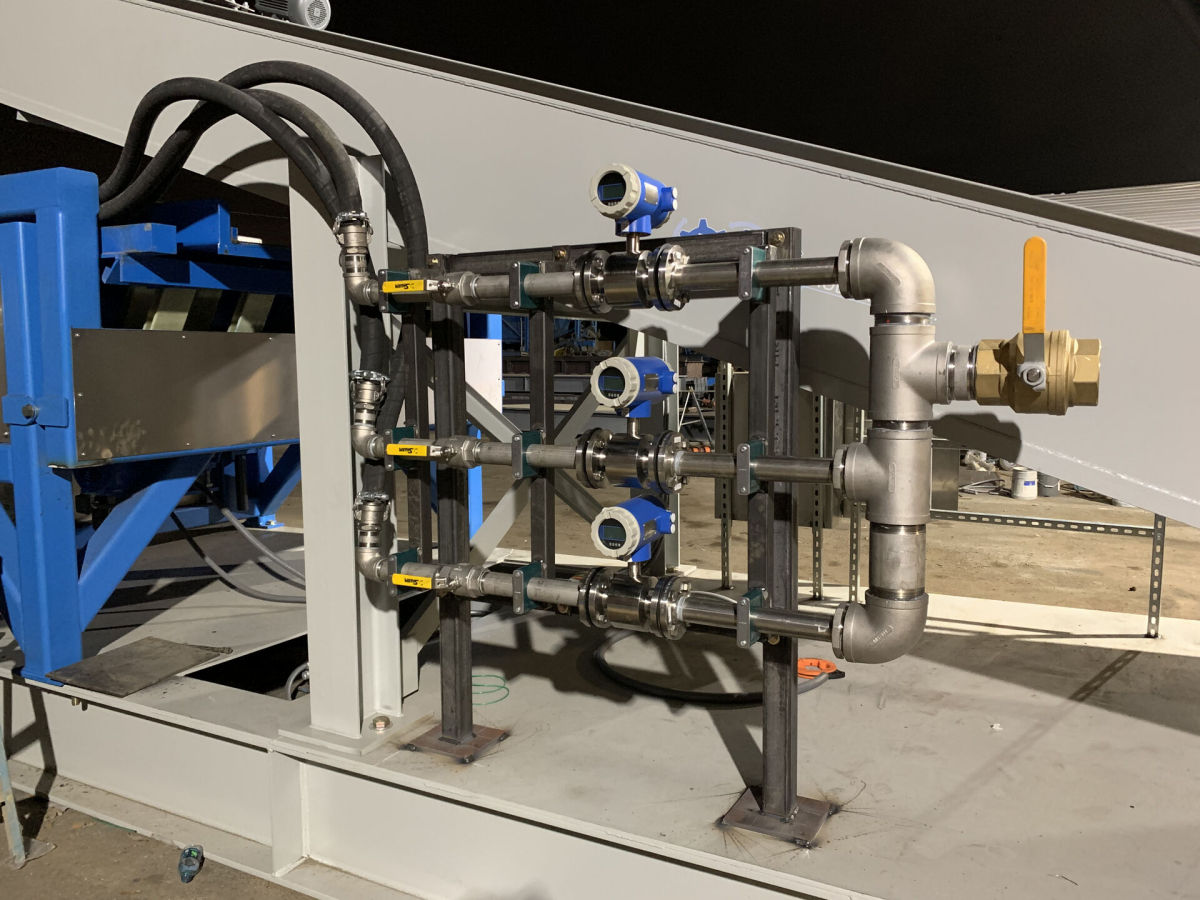

Applications

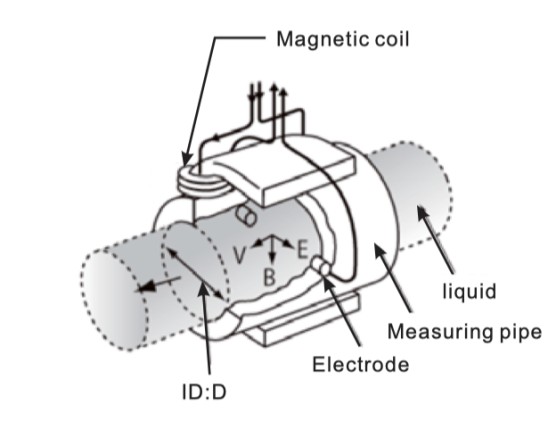

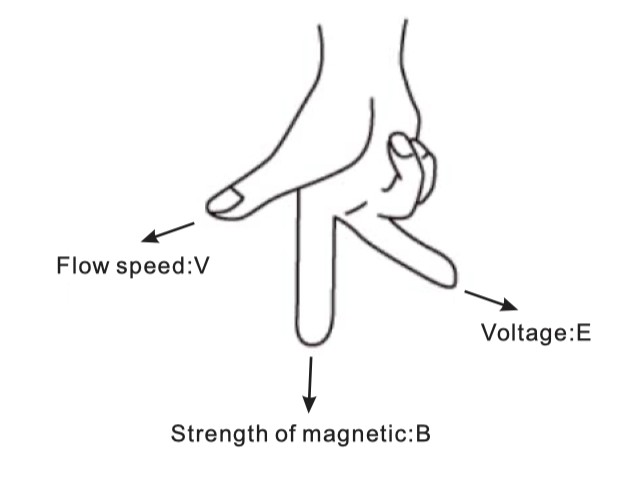

The working principle of the electromagnetic flow meter is based on the Faraday law of electromagnetic induction. When the conducting liquid flows in the orthogonal direction of the magnetic line direction, it will cut the magnetic lines and generate induced voltage, which shows linear relationship with the flowing speed. Thus, the fluidic volume flow can be calculated.

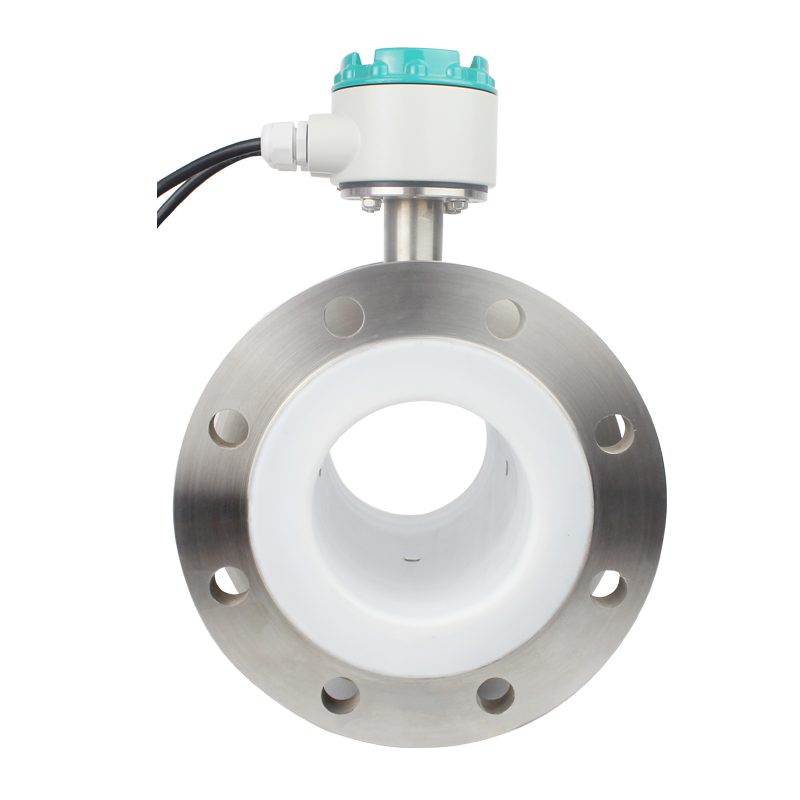

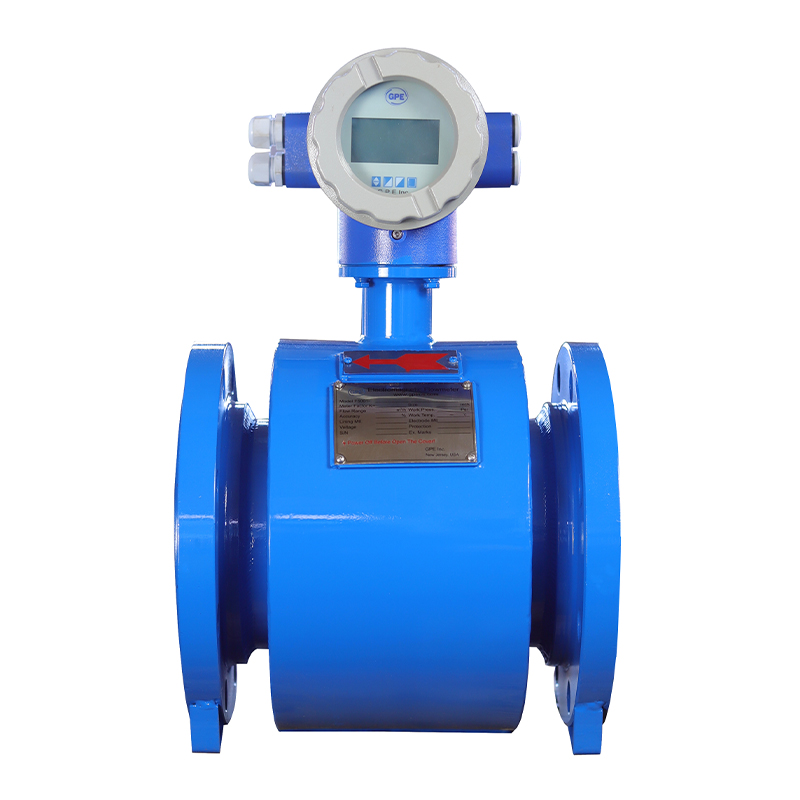

F5001 electromagnetic flow meter is mainly composed of the sensor and transmitter. The measuring tube of the sensor is equipped with the excitation coils upward and downward. The transmitter supplies the excitation current, which generates the magnetic field which goes through the measuring tube once it is powered on. A pair of induction electrodes installed on the inner side of the measuring tube comes in contact with the liquid to guide the induced voltage to the sensor.


Electromagnetic flowmeterElectromagnetic flowmeter


DisplayLCM 128*64 pixel backlit type
ButtonsFour-button operation
Communication interfaceRS-485 (Modbus)(Optional support for HART, PROFIBUS)
Accuracy±0.5% of reading@1m/s(0.2% optional)
 Medium temperatureCompact:≤176 °F (80 °C)
Remote mount: ≤248 °F (120 °C) for PTFE: ≤176 °F (80 °C) for Rubber
Ambient temperature-40 °F to 158 °F (-40 °C to +70 °C) 1
Fluidic conductivity> 5 uS/cm
Measuring scope0.1m/s ~ 10m/s
Current output accuracy0.1% of Pulse Output Accuracy Temperature coefficient (100ppm/BC)
Current output modeProactive
output4 ~ 20mA; pulse/ frequency
Maximum load of current output< 750Ω
Protection ratingIP65 for transducer; IP67 for transmitterIP68 (Transducer) IP65/ NEMA 4X (Transmitter) 2
Enclosure materialAluminum alloy
Input powerAC 100~240V or DC 24V
Power consumption< 10W
Wire inlet specificationM20 x 1.5*2 Female
Excitation modePulse DC
Vibration regulationIEC 60068-2-3
EMC regulationIEC/EN 61326-1 Class A table2
